Masonry

Vue Bootstrap 5 Masonry component

Responsive masonry built with Vue Bootstrap 5. Masonry is a grid layout based on columns & it optimizes the use of space inside the web page by reducing any unnecessary gaps.

To learn more read Docs.


Basic layout



          <template>
            <div class="masonry-with-columns" id="masonry-with-columns">
              <div style="order: 0">1</div>
              <div style="order: 1">2</div>
              <div style="order: 2">3</div>
              <div style="order: 0">4</div>
              <div style="order: 1">5</div>
              <div style="order: 2">6</div>
              <div style="order: 0">7</div>
              <div style="order: 1">8</div>
              <div style="order: 2">9</div>
              <div style="order: 0">10</div>
              <div style="order: 1">11</div>
              <div style="order: 2">12</div>
              <div style="order: 0">13</div>
              <div style="order: 1">14</div>
              <div style="order: 2">15</div>
            </div>
          </template>





          <style>
            body {
              margin: 0;
              padding: 1rem;
            }

            .masonry-with-columns {
              display: -webkit-box;
              display: -webkit-flex;
              display: -ms-flexbox;
              display: flex;
              -webkit-box-orient: vertical;
              -webkit-box-direction: normal;
              -webkit-flex-direction: column;
              -ms-flex-direction: column;
              flex-direction: column;
              -webkit-flex-wrap: wrap;
              -ms-flex-wrap: wrap;
              flex-wrap: wrap;
              max-height: 1000px;
            }

            .masonry-with-columns div {
              -webkit-box-flex: 1;
              -webkit-flex: 1 0 auto;
              -ms-flex: 1 0 auto;
              flex: 1 0 auto;
              background: #00997b;
              color: white;
              margin: 0 1rem 1rem 0;
              text-align: center;
              font-weight: 900;
              font-size: 2rem;
            }

            .masonry-with-columns div:nth-child(1) {
              height: 163px;
              line-height: 163px;
            }

            .masonry-with-columns div:nth-child(2) {
              height: 495px;
              line-height: 495px;
            }

            .masonry-with-columns div:nth-child(3) {
              height: 120px;
              line-height: 120px;
            }

            .masonry-with-columns div:nth-child(4) {
              height: 309px;
              line-height: 309px;
            }

            .masonry-with-columns div:nth-child(5) {
              height: 317px;
              line-height: 317px;
            }

            .masonry-with-columns div:nth-child(6) {
              height: 277px;
              line-height: 277px;
            }

            .masonry-with-columns div:nth-child(7) {
              height: 339px;
              line-height: 339px;
            }

            .masonry-with-columns div:nth-child(8) {
              height: 491px;
              line-height: 491px;
            }

            .masonry-with-columns div:nth-child(9) {
              height: 281px;
              line-height: 281px;
            }

            .masonry-with-columns div:nth-child(10) {
              height: 499px;
              line-height: 499px;
            }

            .masonry-with-columns div:nth-child(11) {
              height: 490px;
              line-height: 490px;
            }

            .masonry-with-columns div:nth-child(12) {
              height: 289px;
              line-height: 289px;
            }

            .masonry-with-columns div:nth-child(13) {
              height: 356px;
              line-height: 356px;
            }

            .masonry-with-columns div:nth-child(14) {
              height: 406px;
              line-height: 406px;
            }

            .masonry-with-columns div:nth-child(15) {
              height: 196px;
              line-height: 196px;
            }

            .masonry-with-columns div:nth-child(16) {
              height: 237px;
              line-height: 237px;
            }

            .masonry-with-columns div:nth-child(17) {
              height: 367px;
              line-height: 367px;
            }

            .masonry-with-columns div:nth-child(18) {
              height: 472px;
              line-height: 472px;
            }

            .masonry-with-columns div:nth-child(19) {
              height: 413px;
              line-height: 413px;
            }

            .masonry-with-columns div:nth-child(20) {
              height: 337px;
              line-height: 337px;
            }

            .masonry-with-columns div:nth-child(21) {
              height: 406px;
              line-height: 406px;
            }

            .masonry-with-columns div:nth-child(22) {
              height: 368px;
              line-height: 368px;
            }

            .masonry-with-columns div:nth-child(23) {
              height: 130px;
              line-height: 130px;
            }

            .masonry-with-columns div:nth-child(24) {
              height: 209px;
              line-height: 209px;
            }

            .masonry-with-columns div:nth-child(25) {
              height: 203px;
              line-height: 203px;
            }

            .masonry-with-columns div:nth-child(26) {
              height: 368px;
              line-height: 368px;
            }

            .masonry-with-columns div:nth-child(27) {
              height: 163px;
              line-height: 163px;
            }

            .masonry-with-columns div:nth-child(28) {
              height: 418px;
              line-height: 418px;
            }

            .masonry-with-columns div:nth-child(29) {
              height: 123px;
              line-height: 123px;
            }

            .masonry-with-columns div:nth-child(30) {
              height: 256px;
              line-height: 256px;
            }

            .masonry-with-columns div:nth-child(31) {
              height: 196px;
              line-height: 196px;
            }

            .masonry-with-columns div:nth-child(32) {
              height: 224px;
              line-height: 224px;
            }

            .masonry-with-columns div:nth-child(33) {
              height: 122px;
              line-height: 122px;
            }

            .masonry-with-columns div:nth-child(34) {
              height: 303px;
              line-height: 303px;
            }

            .masonry-with-columns div:nth-child(35) {
              height: 159px;
              line-height: 159px;
            }

            .masonry-with-columns div:nth-child(36) {
              height: 320px;
              line-height: 320px;
            }
          </style>





          <script>
            import {
              onMounted
            } from "vue";
            export default {
              setup() {
                const masonry = () => {
                  const numCols = 3;
                  const colHeights = Array(numCols).fill(0);
                  const container = document.querySelector("#masonry-with-columns");
                  Array.from(container.children).forEach((child, i) => {
                    const order = i % numCols;
                    child.style.order = order;
                    colHeights[order] += parseFloat(child.clientHeight);
                  });
                  container.style.height = Math.max(...colHeights) + "px";
                };

                onMounted(() => masonry());
              },
            };
          </script>

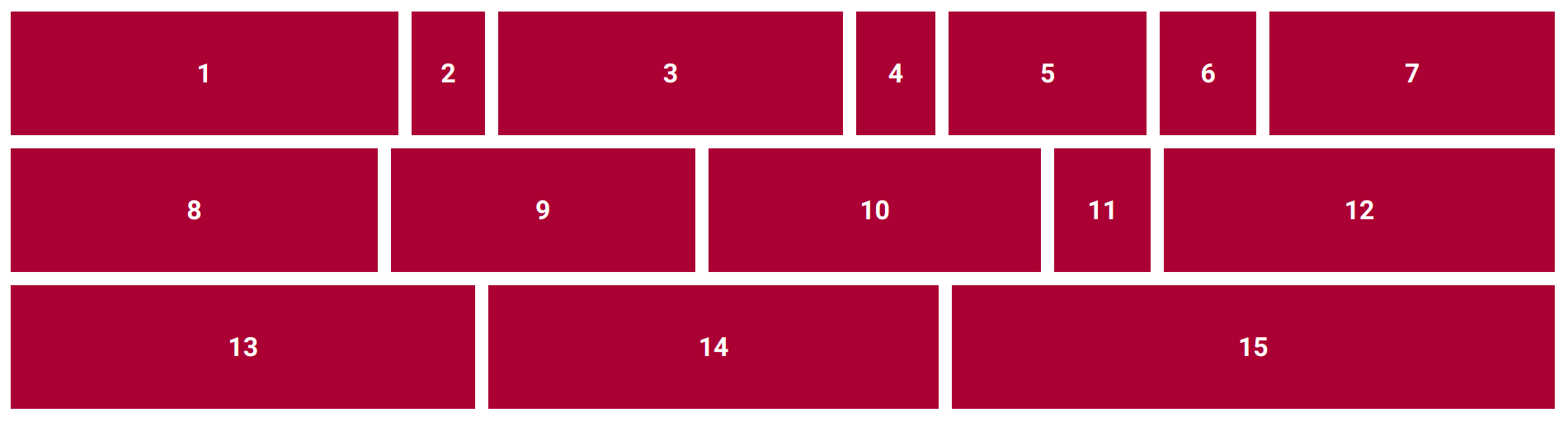

Horizontal option



            <template>
              <div class="masonry-with-columns-2" id="masonry-with-columns-2">
                <div>1</div>
                <div>2</div>
                <div>3</div>
                <div>4</div>
                <div>5</div>
                <div>6</div>
                <div>7</div>
                <div>8</div>
                <div>9</div>
                <div>10</div>
                <div>11</div>
                <div>12</div>
                <div>13</div>
                <div>14</div>
                <div>15</div>
              </div>
            </template>





            <style>
              body {
                margin: 0;
                padding: 1rem;
              }

              .masonry-with-columns-2 {
                display: -webkit-box;
                display: -webkit-flex;
                display: -ms-flexbox;
                display: flex;
                -webkit-flex-wrap: wrap;
                -ms-flex-wrap: wrap;
                flex-wrap: wrap;
              }

              .masonry-with-columns-2 div {
                height: 150px;
                line-height: 150px;
                background: #9b1b30;
                color: white;
                margin: 0 1rem 1rem 0;
                text-align: center;
                font-weight: 900;
                font-size: 2rem;
                -webkit-box-flex: 1;
                -webkit-flex: 1 0 auto;
                -ms-flex: 1 0 auto;
                flex: 1 0 auto;
              }

              .masonry-with-columns-2 div:nth-child(1) {
                width: 222px;
              }

              .masonry-with-columns-2 div:nth-child(2) {
                width: 102px;
              }

              .masonry-with-columns-2 div:nth-child(3) {
                width: 155px;
              }

              .masonry-with-columns-2 div:nth-child(4) {
                width: 365px;
              }

              .masonry-with-columns-2 div:nth-child(5) {
                width: 132px;
              }

              .masonry-with-columns-2 div:nth-child(6) {
                width: 106px;
              }

              .masonry-with-columns-2 div:nth-child(7) {
                width: 199px;
              }

              .masonry-with-columns-2 div:nth-child(8) {
                width: 164px;
              }

              .masonry-with-columns-2 div:nth-child(9) {
                width: 424px;
              }

              .masonry-with-columns-2 div:nth-child(10) {
                width: 467px;
              }

              .masonry-with-columns-2 div:nth-child(11) {
                width: 350px;
              }

              .masonry-with-columns-2 div:nth-child(12) {
                width: 168px;
              }

              .masonry-with-columns-2 div:nth-child(13) {
                width: 296px;
              }

              .masonry-with-columns-2 div:nth-child(14) {
                width: 440px;
              }

              .masonry-with-columns-2 div:nth-child(15) {
                width: 110px;
              }

              .masonry-with-columns-2 div:nth-child(16) {
                width: 413px;
              }

              .masonry-with-columns-2 div:nth-child(17) {
                width: 333px;
              }

              .masonry-with-columns-2 div:nth-child(18) {
                width: 441px;
              }

              .masonry-with-columns-2 div:nth-child(19) {
                width: 74px;
              }

              .masonry-with-columns-2 div:nth-child(20) {
                width: 122px;
              }

              .masonry-with-columns-2 div:nth-child(21) {
                width: 189px;
              }

              .masonry-with-columns-2 div:nth-child(22) {
                width: 91px;
              }

              .masonry-with-columns-2 div:nth-child(23) {
                width: 269px;
              }

              .masonry-with-columns-2 div:nth-child(24) {
                width: 394px;
              }

              .masonry-with-columns-2 div:nth-child(25) {
                width: 139px;
              }

              .masonry-with-columns-2 div:nth-child(26) {
                width: 240px;
              }

              .masonry-with-columns-2 div:nth-child(27) {
                width: 184px;
              }

              .masonry-with-columns-2 div:nth-child(28) {
                width: 261px;
              }

              .masonry-with-columns-2 div:nth-child(29) {
                width: 358px;
              }

              .masonry-with-columns-2 div:nth-child(30) {
                width: 393px;
              }

              .masonry-with-columns-2 div:nth-child(31) {
                width: 370px;
              }

              .masonry-with-columns-2 div:nth-child(32) {
                width: 399px;
              }

              .masonry-with-columns-2 div:nth-child(33) {
                width: 263px;
              }

              .masonry-with-columns-2 div:nth-child(34) {
                width: 135px;
              }

              .masonry-with-columns-2 div:nth-child(35) {
                width: 221px;
              }

              .masonry-with-columns-2 div:nth-child(36) {
                width: 233px;
              }
            </style>

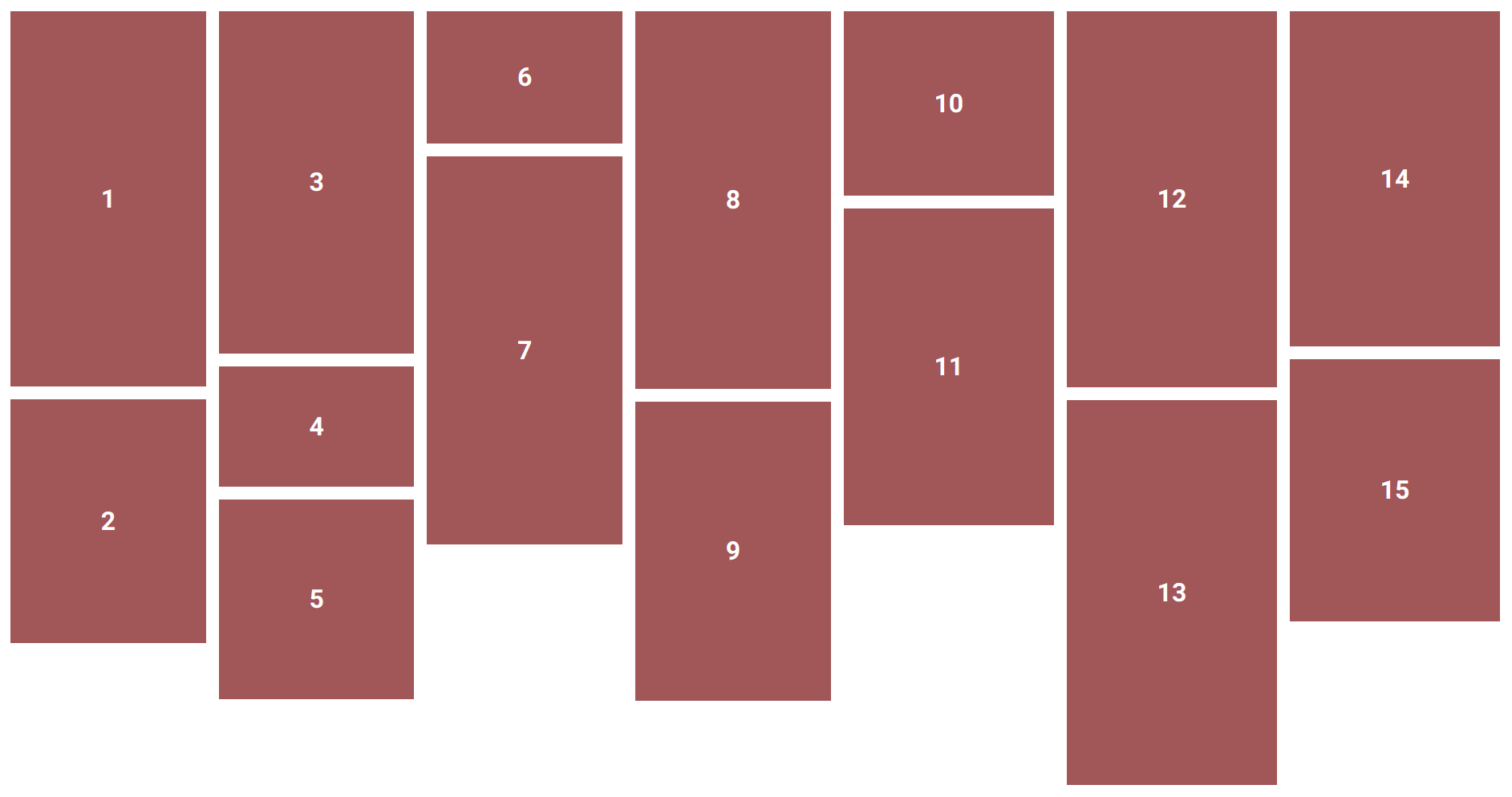

Flexbox option



              <template>
                <div class="masonry-with-flex">
                  <div>1</div>
                  <div>2</div>
                  <div>3</div>
                  <div>4</div>
                  <div>5</div>
                  <div>6</div>
                  <div>7</div>
                  <div>8</div>
                  <div>9</div>
                  <div>10</div>
                  <div>11</div>
                  <div>12</div>
                  <div>13</div>
                  <div>14</div>
                  <div>15</div>
                </div>
              </template>





              <style>
                body {
                  margin: 0;
                  padding: 1rem;
                }

                .masonry-with-flex {
                  display: -webkit-box;
                  display: -webkit-flex;
                  display: -ms-flexbox;
                  display: flex;
                  -webkit-box-orient: vertical;
                  -webkit-box-direction: normal;
                  -webkit-flex-direction: column;
                  -ms-flex-direction: column;
                  flex-direction: column;
                  -webkit-flex-wrap: wrap;
                  -ms-flex-wrap: wrap;
                  flex-wrap: wrap;
                  max-height: 1000px;
                }

                .masonry-with-flex div {
                  width: auto;
                  background: #975a58;
                  color: white;
                  margin: 0 1rem 1rem 0;
                  text-align: center;
                  font-weight: 900;
                  font-size: 2rem;
                }

                .masonry-with-flex div:nth-child(1) {
                  height: 334px;
                  line-height: 334px;
                }

                .masonry-with-flex div:nth-child(2) {
                  height: 428px;
                  line-height: 428px;
                }

                .masonry-with-flex div:nth-child(3) {
                  height: 432px;
                  line-height: 432px;
                }

                .masonry-with-flex div:nth-child(4) {
                  height: 292px;
                  line-height: 292px;
                }

                .masonry-with-flex div:nth-child(5) {
                  height: 312px;
                  line-height: 312px;
                }

                .masonry-with-flex div:nth-child(6) {
                  height: 191px;
                  line-height: 191px;
                }

                .masonry-with-flex div:nth-child(7) {
                  height: 302px;
                  line-height: 302px;
                }

                .masonry-with-flex div:nth-child(8) {
                  height: 224px;
                  line-height: 224px;
                }

                .masonry-with-flex div:nth-child(9) {
                  height: 475px;
                  line-height: 475px;
                }

                .masonry-with-flex div:nth-child(10) {
                  height: 440px;
                  line-height: 440px;
                }

                .masonry-with-flex div:nth-child(11) {
                  height: 426px;
                  line-height: 426px;
                }

                .masonry-with-flex div:nth-child(12) {
                  height: 362px;
                  line-height: 362px;
                }

                .masonry-with-flex div:nth-child(13) {
                  height: 129px;
                  line-height: 129px;
                }

                .masonry-with-flex div:nth-child(14) {
                  height: 344px;
                  line-height: 344px;
                }

                .masonry-with-flex div:nth-child(15) {
                  height: 236px;
                  line-height: 236px;
                }

                .masonry-with-flex div:nth-child(16) {
                  height: 378px;
                  line-height: 378px;
                }

                .masonry-with-flex div:nth-child(17) {
                  height: 312px;
                  line-height: 312px;
                }

                .masonry-with-flex div:nth-child(18) {
                  height: 172px;
                  line-height: 172px;
                }

                .masonry-with-flex div:nth-child(19) {
                  height: 474px;
                  line-height: 474px;
                }

                .masonry-with-flex div:nth-child(20) {
                  height: 252px;
                  line-height: 252px;
                }

                .masonry-with-flex div:nth-child(21) {
                  height: 355px;
                  line-height: 355px;
                }

                .masonry-with-flex div:nth-child(22) {
                  height: 401px;
                  line-height: 401px;
                }

                .masonry-with-flex div:nth-child(23) {
                  height: 369px;
                  line-height: 369px;
                }

                .masonry-with-flex div:nth-child(24) {
                  height: 449px;
                  line-height: 449px;
                }

                .masonry-with-flex div:nth-child(25) {
                  height: 411px;
                  line-height: 411px;
                }

                .masonry-with-flex div:nth-child(26) {
                  height: 122px;
                  line-height: 122px;
                }

                .masonry-with-flex div:nth-child(27) {
                  height: 262px;
                  line-height: 262px;
                }

                .masonry-with-flex div:nth-child(28) {
                  height: 154px;
                  line-height: 154px;
                }

                .masonry-with-flex div:nth-child(29) {
                  height: 308px;
                  line-height: 308px;
                }

                .masonry-with-flex div:nth-child(30) {
                  height: 327px;
                  line-height: 327px;
                }

                .masonry-with-flex div:nth-child(31) {
                  height: 374px;
                  line-height: 374px;
                }

                .masonry-with-flex div:nth-child(32) {
                  height: 106px;
                  line-height: 106px;
                }

                .masonry-with-flex div:nth-child(33) {
                  height: 340px;
                  line-height: 340px;
                }

                .masonry-with-flex div:nth-child(34) {
                  height: 492px;
                  line-height: 492px;
                }

                .masonry-with-flex div:nth-child(35) {
                  height: 475px;
                  line-height: 475px;
                }

                .masonry-with-flex div:nth-child(36) {
                  height: 373px;
                  line-height: 373px;
                }
              </style>




Images option



                <template>
                  <div class="masonry-with-flex masonry-with-columns" style="max-height: 1200px">
                    <img src="https://mdbootstrap.com/img/Photos/Others/food3.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image06.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image17.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image02.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image008.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image010.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image002.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image005.webp" style="width: 33.3%" />
                    <img src="https://mdbootstrap.com/img/Photos/Others/image18.webp" style="width: 33.3%" />
                  </div>
                </template>





                <style>
                  .masonry-with-columns,
                  .masonry-with-flex {
                    display: -webkit-box;
                    display: -webkit-flex;
                    display: -ms-flexbox;
                    display: flex;
                    -webkit-box-orient: vertical;
                    -webkit-box-direction: normal;
                    -webkit-flex-direction: column;
                    -ms-flex-direction: column;
                    flex-direction: column;
                    -webkit-flex-wrap: wrap;
                    -ms-flex-wrap: wrap;
                    flex-wrap: wrap;
                  }

                  .masonry-with-columns div {
                    -webkit-box-flex: 1;
                    -webkit-flex: 1 0 auto;
                    -ms-flex: 1 0 auto;
                    flex: 1 0 auto;
                  }
                </style>





                <script>
                  import {
                    onMounted
                  } from "vue";
                  export default {
                    setup() {
                      onMounted(() => {
                        const masonryWrapper = document.querySelector(".masonry-with-flex");
                        Array.from(masonryWrapper.children).forEach((child, i) => {
                          const order = i % 3;
                          child.style.order = order;
                        });
                      });
                    },
                  };
                </script>
